Remote Monitoring System uses GPRS system to keep us connected to the Elevator. This keeps us informed in case of elevator breakdown which helps us to take immediate action. This information helps us provide you best service at all times.
the Regenerative drive is the latest upgrade which enables power generation during stopping of the elevator. Unlike the conventional drives which heat a resistor while dynamic braking, regenerative drive generates useful power which can be used by other lifts, electrical equipment or also can be fed back to the grid.
This ensures efficient braking of the elevator.
The power generated by this drive has very low harmonic distortion.
This Regenerative drive also offers multiple protection functions such as over current protection, short circuit protection, over temperature protection and also abnormal power voltage protection.
All the Elevators except for the Hydraulic Elevators are Equipped with VVVF Drives. The VVVF Drive used in the Elevator Results in Smooth Start and Smooth Stop of the Elevator ensuring comfortable feeling and perfect leveling.
This drive also helps reduce power consumption upto 30% and also increases the life of the Equipment as there are no jerks due to sudden start and stop of the Elevator.
The Full Collective Control System uses logic to collect the Passenger while travelling in both up and down directions thereby reducing power consumption and waiting time.
The Control system along with VVVF Drives reduces power consumption by upto 40% and also saves time.
The Down Collective system uses logic to collect the Passenger while travelling in the down direction thereby reducing power consumption and waiting time.
The Controller along with VVVF Drives reduces power consumption by upto 30% and also saves waiting time.
This system is applicable where two lifts are next to each other. Duplex System is available in full Collective Control System and uses logic to dispatch nearest lift in the direction of travel to collect the waiting Passenger thereby reducing power consumption and waiting time.
This Control system along with VVVF Drives reduces power consumption by upto 40% and also saves time.
This system is applicable where upto 8 Lifts are close to each other in the same Building.
A separate control system is required and is fitted with the control system.
This System uses logic to dispatch nearest lift in the direction of travel to collect the waiting Passenger thereby reducing power consumption and waiting time.
This Control system along with VVVF Drives reduces power consumption by upto 40% and also saves time.
Remote Monitoring System is connected to the Control System and Uses card to recognize the user of the elevator. With this system users can be restricted to travel to certain floors of the Buildings.
This system can be made applicable to premium commercial and residential buildings or to buildings with high security buildings with various levels of access to the users.
Direct landing System ensures there is no creep during the stopping of the elevator, The elevator decelerates from high speed to stop without an intermediate creep, thus saving time at each stopping.

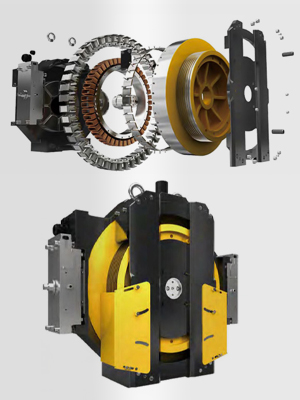

Amalan Lif Enterprise SDN. BHD. use precision made High Torque Permanent Magnet Synchronous Motor gearless traction machines.
These Machines are highly efficient and consumes less Power as compared to Geared machines.
As there is no Reduction gearbox, the machine ensures high efficiency.
These machines are Sealed for life and do not require Oil Change.
These machines also provide a smooth ride for the passengers as there is low noise and vibrations as compared to a geared machine.
Most of the time the gearless machine is fitted with 2:1 roping which reduces the Kilowatt rating of the Machine required for carrying certain amount of load resulting in better efficiency.
These Machines save upto 30% power as compared to geared Machine.

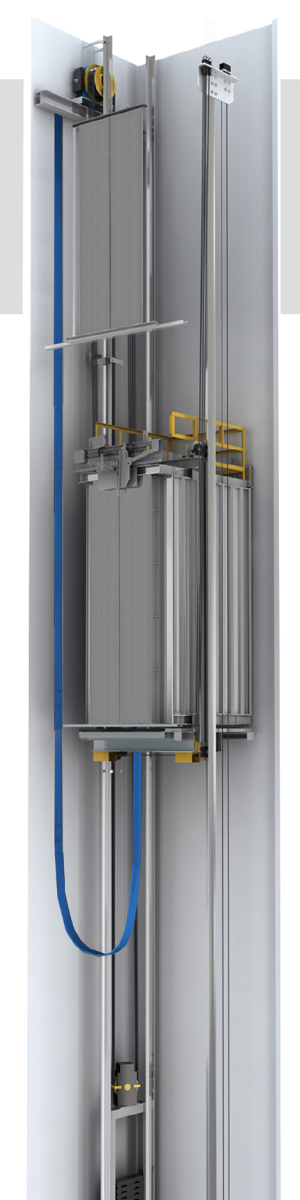

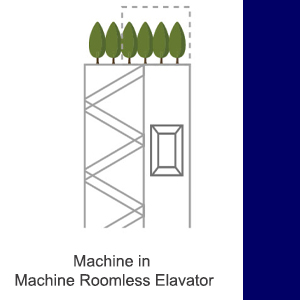

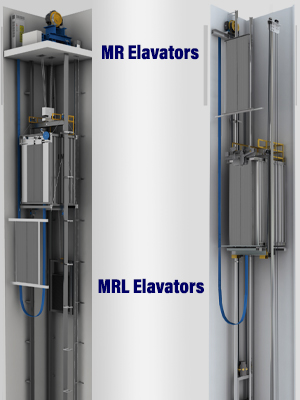

This Machine can be used for Machine Roomless applications.
These Machines are used for low as well as for high speed application.
All high-rise, high speed elevators use gearless machines.
Amalan Lif Enterprise SDN. BHD. use precision made geared traction machines to serve the lift industry.
These machines use AC induction Motor and Worm Wheel Reduction Gear Box.
These Machines are made for Long life and durability. The High Quality Lubricant is used to increase the Life of the Machine.
These Geared Machines are used for speeds upto 2.0 mps and for height of upto 80 meters
The Gearless Traction Belt machines are modification of Gearless machines with crowned pulleys for using Belts instead of traditional wire rope.
This Machine has all the advantages of the Gearless Machines and along with it adapts the latest technology of using PU coated Steel belts instead of Conventional Wire Ropes.
This Machine can have main Sheave as small 100mm.
These Machines are compact and can be used in machine roomless application.
This Assures world class Quality and reliability. The hydraulic Unit Consumes power only during the up direction travel of the Elevator, during its travel in the down direction the elevator consumes almost no Power.
The Hydraulic units can be suited for various applications including Home Lifts, Passenger Lifts, Car Lifts or Goods Lifts.
Hydraulic units can be made suitable for single phase as well as for three phase power supply. Single Phase Hydraulic units are used for Home lift applications.
All Hydraulic units provided by us have manual lowering feature as well as manual raising feature.
These features help to rescue passengers in case of power supply failure.
